    InterSteel
    Article number 1933

    Pivot hinge RVS

    EAN-number 8714186508121
    8714186508121
    3 in stock
    Adviesprijs Korting Uw prijs
    {artikelAdviesprijsIncBtw}
    Included 21% VAT
    114,16
    Included 21% VAT
    94,35excl. VAT

    Description

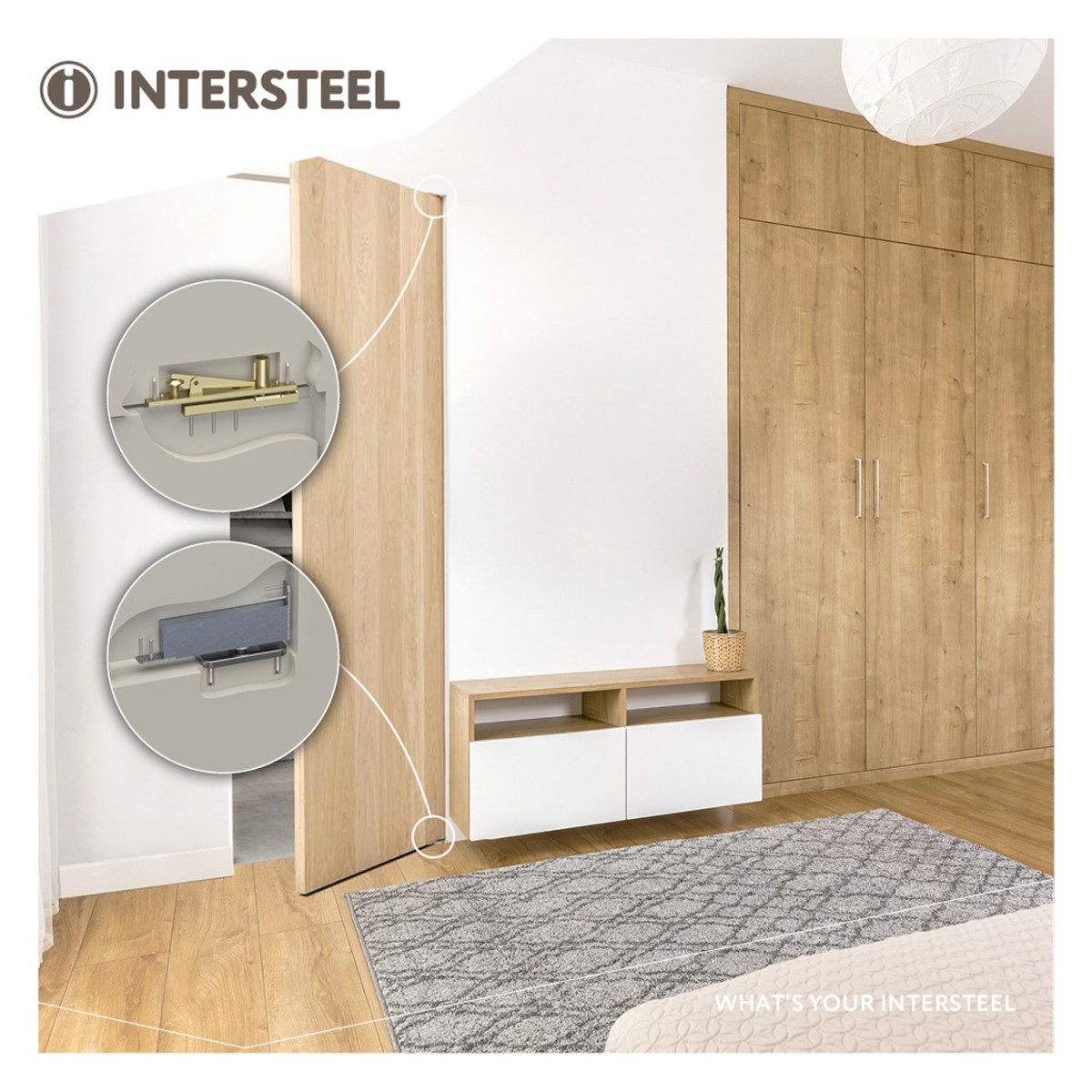

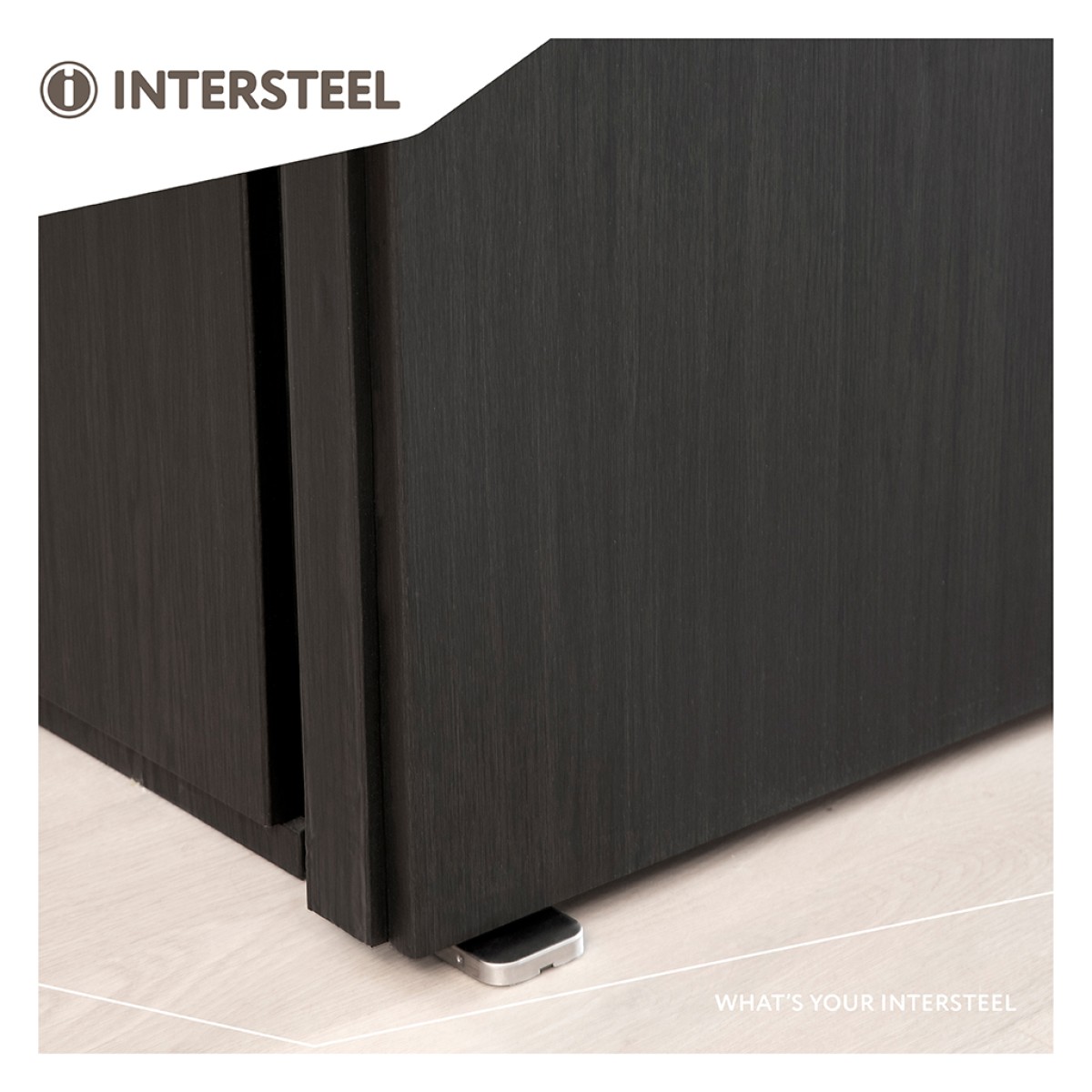

    A pivot door hinge or pivot hinge offers the possibility to rotate a pivot door around its vertical axis. The pivot points are located at the top and bottom of the door. Not only does it offer a practical and space-saving solution, it also gives your interior a stylish and sleek look. This pivot door hinge is made of aluminum and equipped with a stainless steel brushed housing and cover caps. This hinge is suitable for wooden doors weighing up to 75 kilos and from a door thickness of 40 mm. The standard opening angle of the door from the closed position is 150° and the pivot hinge has a position locking of 90°. The closing speed of the door is adjustable, so you can determine how fast the door closes. Mounting takes place in the ceiling and on the floor and the hinge is supplied per piece including mounting material.

    Component properties:

    • Colour stainless steel brushed
    Instructions 1933.pdf Instructions 1933
