Description:

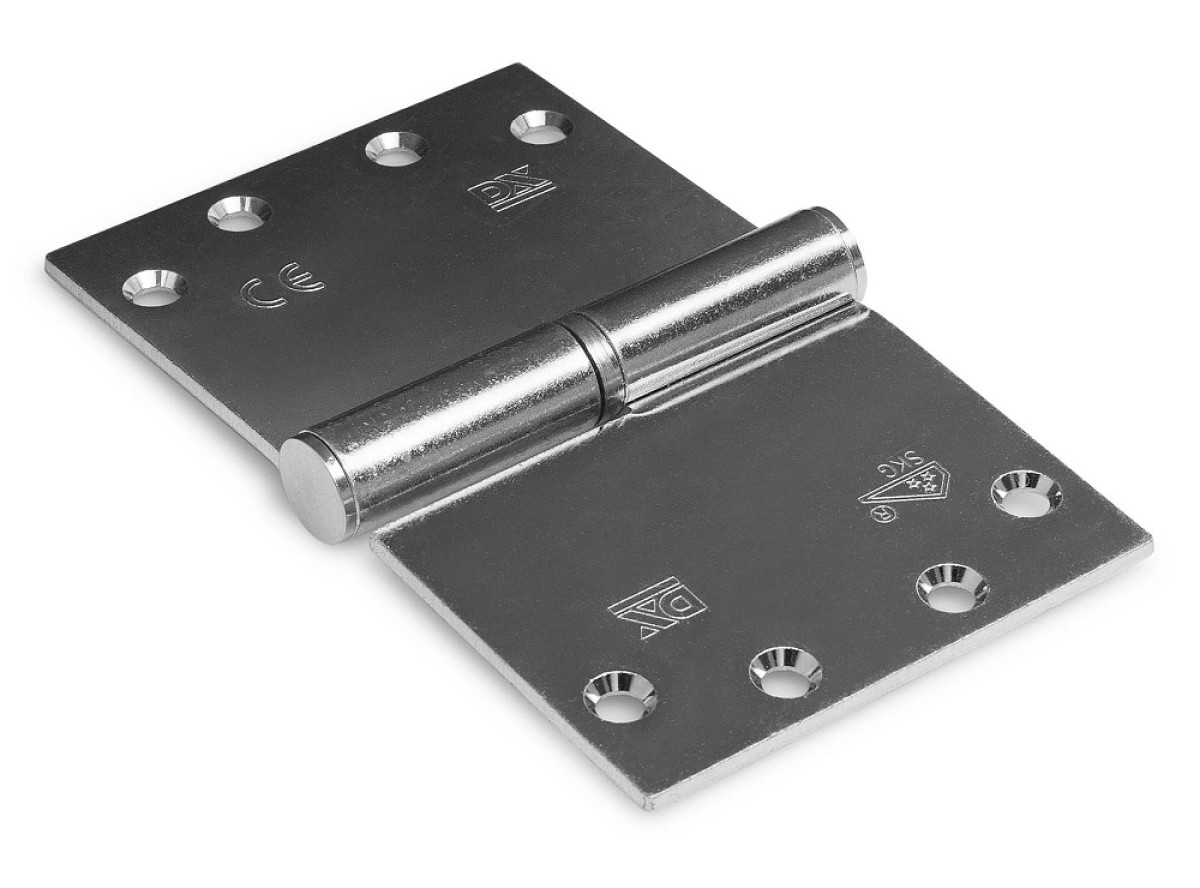

These universal ball pin hinges are very suitable for both interior and exterior doors! Because despite the absence of the thief pin, it is SKG***® approved and suitable for hanging on exterior doors within the Police Quality Mark for Safe Living. Where you need five with other hinges or hinges, you can use four of these ball pin hinges to hang a door in accordance with the SKG***® quality mark.

Thanks to the absence of the thief pin, it is also suitable for hanging interior doors. This way you kill two birds with one stone. It is also a tilting version, which allows you to create a larger turning circle. This makes this hinge ideal for attaching a barn door or other internal door. Because the leaf is wider, the button protrudes further, allowing the door to be opened completely without being blocked by the wall.

Recommended screw size 4 x 45 mm (not included)

Component properties:

• Material steel
• Finish bright galvanized
• Straight corners
• Width 150mm
• Height 89mm
• Carrying capacity per 3pcs = 50kg
• Carrying capacity per 4pcs = 65kg

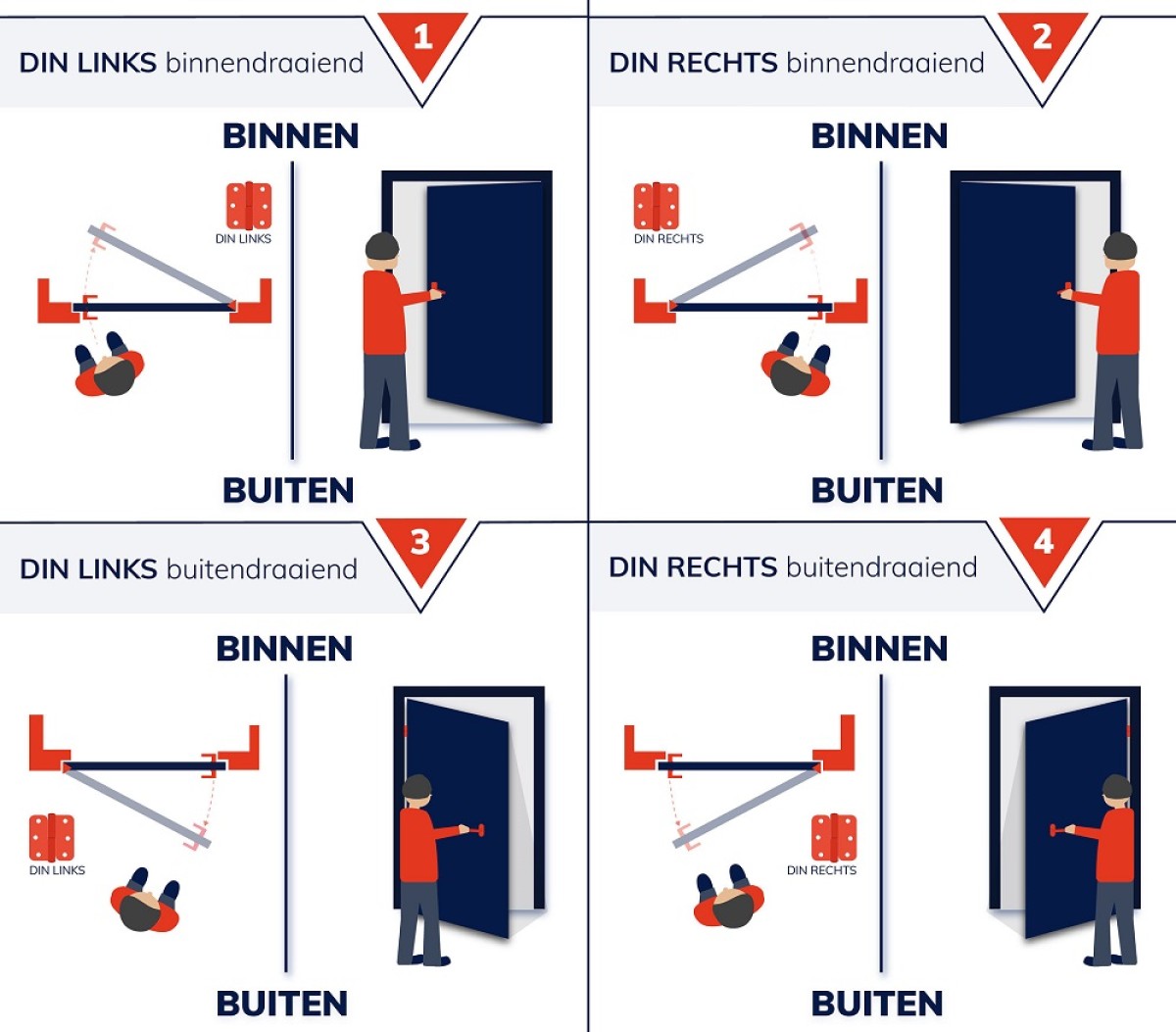

• Direction of rotation DIN right
